Installing the HaloCAD for Autodesk Vault

This chapter explains the requirements, prerequisites, and how to install HaloCAD for Autodesk Vault.

System Requirements

The following table lists the system requirements for installing and running HaloCAD for Autodesk Vault.

Requirements

Prerequisites

Before installing HaloCAD for Autodesk Vault, ensure that the following prerequisites are met.

1. Ensure that you have administrative access before performing most system and dataset tasks.

2. Ensure that the client computer running the HaloCAD Add-on for Autodesk and Inventor can connect to the Autodesk Vault Server.

3. Ensure that your HaloENGINE GenNXT meets the requirements listed below:

   1. License file (enabled with AUTODESK_VAULT client type).

   2. Proper action rules

4. Ensure that you have a user account with document-consuming permissions on the Vault Server.

   1. You can add an existing user account to a specific Autodesk Vault.

   2. Or create a new user account and add it to the specific Autodesk Vault by logging in Autodesk Vault > Tools > Administration > Global Settings > Security > Users > in the User Management window, click New User (enter required details), and click the Vaults button to select all the Vaults listed.

5. Ensure that your Microsoft Entra ID application information is available. Refer to the Technical Reference Manual for more information.

6. Ensure that the certificate required for MPIP authentication is installed in the Local Computer certificate store, along with the Root CA and Intermediate CA certificates.

   1. If the certificate is CA-signed, install all related certificates in their respective stores (Root, Intermediate, and Personal).

   2. If the certificate is self-signed, install it in both the Trusted Root Certification Authorities and Personal stores of the Local Computer.

7. Ensure that an authentication approach is selected for HaloENGINE GenNXT and HaloCAD for Autodesk Vault PLM: Self-Signed Certificate or CA-Signed Certificate.

   1. For a Self-Signed Certificate, export the public key of the HaloENGINE GenNXT server's self-signed certificate and install it in Trusted Root Certification Authorities on the system where HaloCAD for Autodesk Vault is installed.

   2. For a CA-signed certificate, install the Root CA certificate in Trusted Root Certification Authorities on the system where HaloCAD for Autodesk Vault is installed. If an intermediate CA is used, ensure that the intermediate CA certificate is also available on the client system to validate the certificate chain.

8. If you want to implement a failover mechanism in HaloENGINE GenNXT, please refer to the section “Failover Mechanism for HaloENGINE GenNXT in HaloCAD for PLM”.

9. Ensure that HaloCAD for Autodesk Vault and HaloENGINE GenNXT are installed using the same Azure tenant details. A mismatch in tenant details causes configuration errors.

10. To improve performance, configure MPIP labels to allow offline access. In the Microsoft Entra admin center, navigate to Information Protection > Sensitivity labels > select a label > Items > Access control > Allow offline access, and select Always. Note: Allowing offline access can affect revocation. Consider this impact when configuring the offline access setting. For more information, see the Microsoft documentation, Restrict access to content by using sensitivity labels to apply encryption.

Conditions for Running the HaloENGINE GenNXT Tomcat Service

Before running the HaloENGINE GenNXT Tomcat Service, ensure that the following prerequisites are met.

Deny log on as a service policy

If the service runs under a specific user account or group, ensure that the user is not restricted by the Deny log on as a service policy (Local Security Policy > Security Settings > Local Policies > User Rights Assignment).

If the user is restricted by this policy, the following error message appears when starting the HaloENGINE GenNXT Tomcat Service: “Error 1069: The service did not start due to a logon failure.”

Allow non-admin users to access a private key (without full administrator rights)

During installation, HaloENGINE GenNXT retrieves the required Microsoft Entra ID application details and certificate thumbprint. When the HaloENGINE GenNXT Tomcat Service starts, it connects to the MPIP services by using the details provided during installation. As part of this process, it validates the certificate thumbprint against the certificate installed in the Local Computer certificate store. The thumbprint entered during installation must match the thumbprint of the certificate installed in the Local Computer certificate store.

If the service runs under a non-administrative user account, the user might not have sufficient permissions to access the certificate's private key when the certificate is installed in the Local Computer certificate store. This restriction prevents successful authentication with MPIP services. To resolve this issue, grant the user Read permission to access the certificate's private key by following the procedure below. Any errors encountered during this process are recorded in the log file. If the verification succeeds, the service continues with initialization.

Prerequisites

• The required certificates (certificate used by MPIP service, root CA, and intermediate CA) are installed.

• The private key is stored in the Windows Certificate Store under Local Computer.

• You have administrator privileges to perform the configuration.

Follow the procedure below to grant read access:

1. Open Certificate Manager as Administrator.

2. Press Win + R, type mmc, and press Enter.

3. In the console, go to File and select Add/Remove Snap-in.

4. Select Certificates from the list and click Add.

5. Select Computer account, click Next, select Finish, and then click OK.

6. In the left navigation pane, expand Certificates (Local Computer), expand Personal, and select Certificates.

7. Identify the certificate that contains the private key.

8. Right-click the certificate, select All Tasks, and then select Manage Private Keys.

9. In the Permissions window, click Add and enter the non-administrator username (for example, TESTIL) and click OK.

10. Select the Read permission, click Apply, and then click OK.

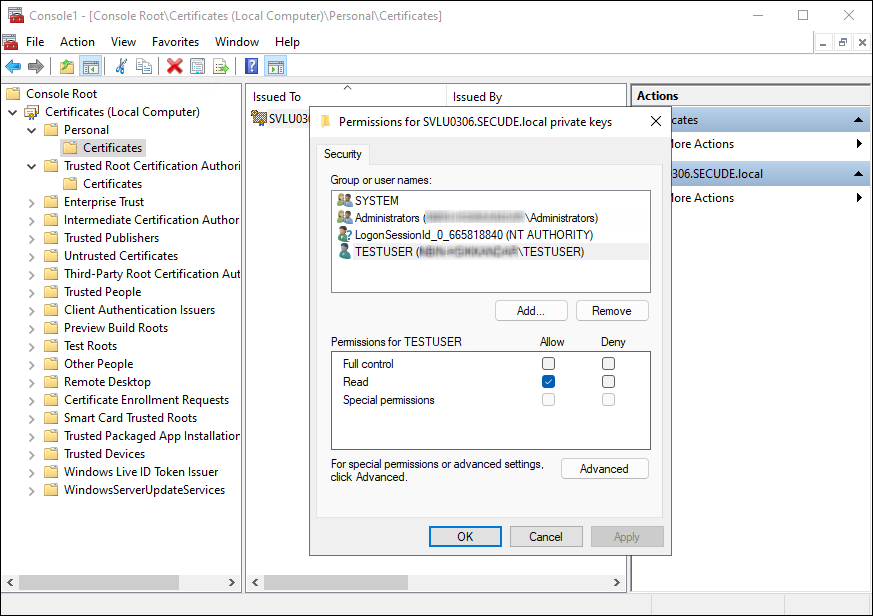

    Granting private key access to a non-admin user

    Result

    The specified non-administrative user can access the certificate's private key, allowing the HaloENGINE GenNXT Tomcat Service to authenticate successfully with MPIP services.

Installation Modes

HaloCAD for Autodesk Vault supports the following installation modes:

1. Graphical Mode

   Graphical mode is an interactive installation method that uses a wizard-based graphical user interface.

2. Silent Mode
   Silent mode is a non-interactive installation method that installs HaloCAD for Autodesk Vault by using command-line options.

Graphical Mode

Install the HaloCAD component using the GUI-based setup program that is provided in the installation package.

1. To begin the interactive installation, double-click the HaloCAD_Autodesk_Vault_Setup.exe installer.

   Depending on your Windows security settings, a security warning similar to "Do you want to allow the following program to make changes to this computer?" may appear. If prompted, click Yes to continue the installation.

2. When the installer starts, the Startup dialog appears, then the Welcome dialog.

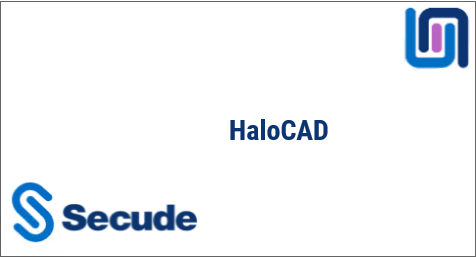

   Startup dialog

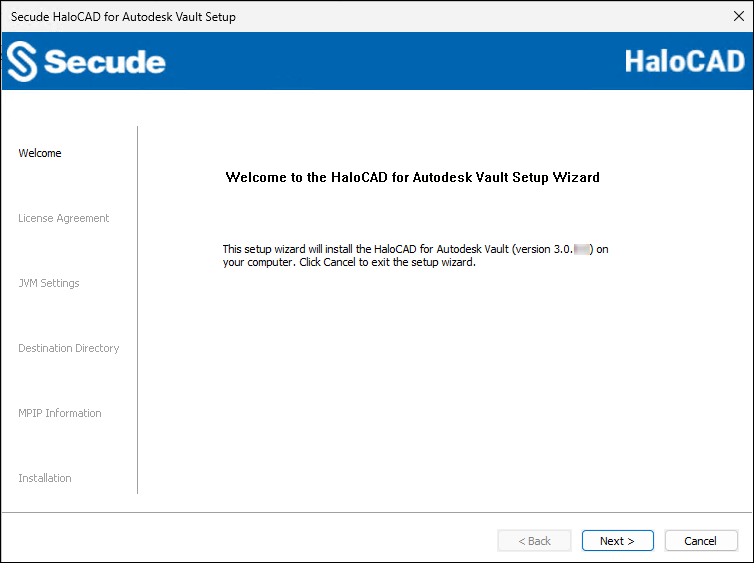

   Welcome dialog

3. Click Next to continue.

4. The License Agreement dialog appears.

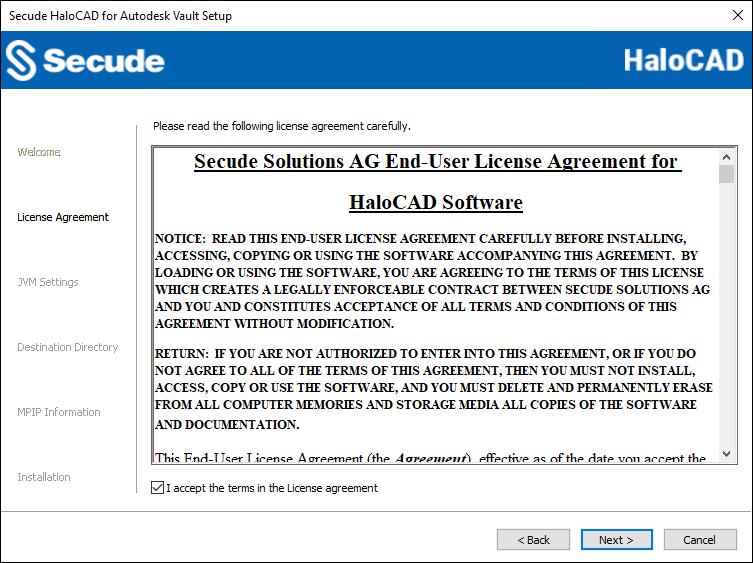

   End-User License Agreement Dialog

5. Read the End-User License Agreement. If you agree to the terms, select I accept the terms in the License Agreement, and then click Next.

6. The JVM Settings dialog appears.

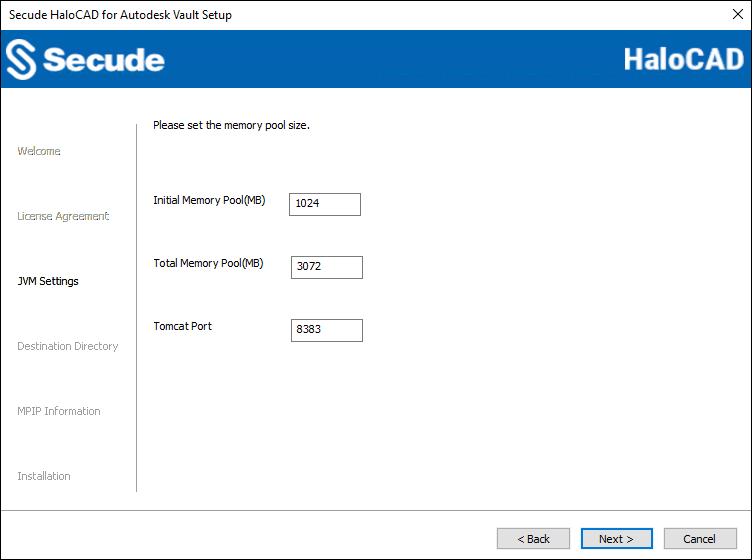

   Tomcat pool size configuration dialog

7. Enter the amount of memory you want to allocate to change the Initial Memory Pool and Total Memory Pool preset values. Note: Ensure that the Total Memory Pool does not exceed the System's available 3/4th RAM. The default Tomcat port is 8383. You can, however, change the port number; it must be greater than 999 and less than or equal to 65535.

8. Click Next.

9. The Destination Directory dialog appears.

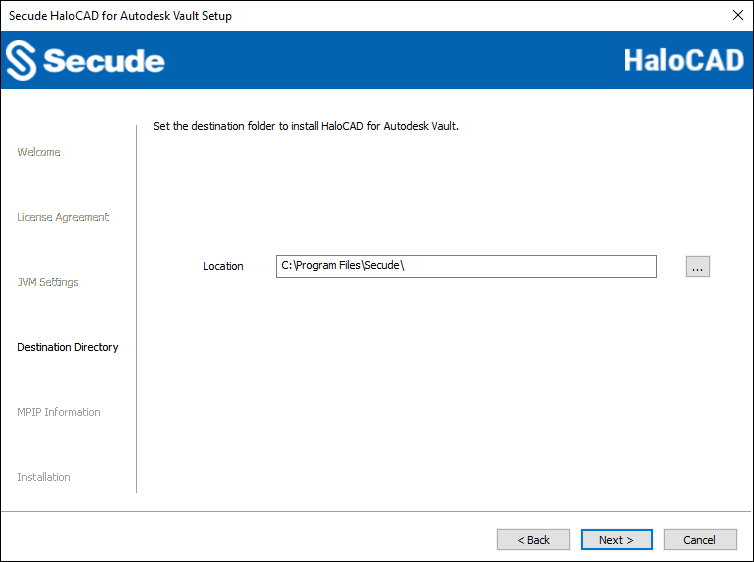

   Destination directory dialog

10. By default, the application files are installed in the following directory: C:\Program Files\Secude\. To install HaloCAD for Autodesk Vault in a different location, click Browse and select the required directory.

11. Click Next.

12. The MPIP Information dialog appears. To avoid errors, ensure that you enter the correct Microsoft Entra ID application details in the installation wizard.

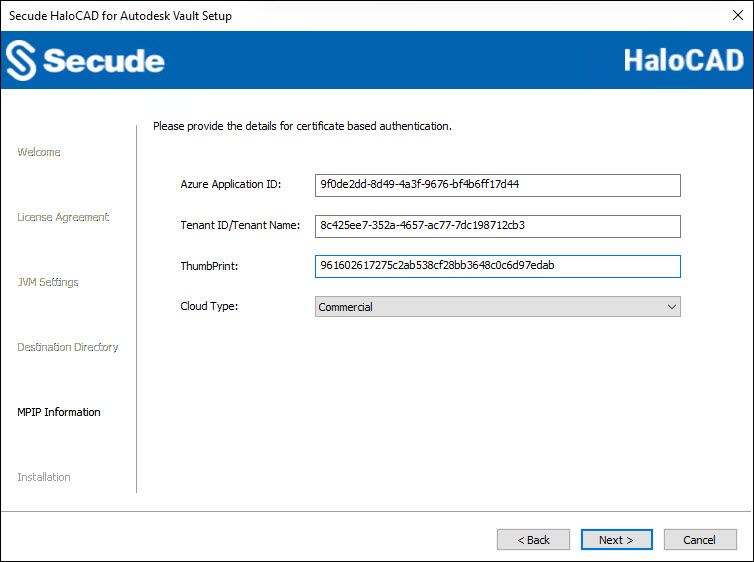

    Certificate-based authentication dialog

    1. Azure Application ID: Enter the Application ID of the registered application in the Microsoft Entra admin center. For example, 9f0de2dd-8d49-4a3f-9676-bf4b6ff17d44

    2. Tenant ID/Tenant Name: Enter your Microsoft Entra tenant name (for example, contoso.onmicrosoft.com) or its tenant ID (for example, 8c425ee7-352a-4657-ac77-7dc198712cb3).

    3. Thumbprint: Enter the thumbprint of the MPIP authentication certificate installed in the Local Computer certificate store. For example, 9d2fdcae3f6ea56f773df54d877ca09b34fca202.

    4. Cloud Type: Commercial is selected by default. Based on your Azure subscription and configuration, select the required cloud type from the list: Commercial, Custom, Germany, US_DoD, US_GCC, US_GCC_High, US_Sec, US_Nat, or China_01.
       If you select Custom, enter the appropriate URLs in the Protection Cloud URL (for example, https://api.aadrm.com) and Policy Cloud URL (for example, https://dataservice.protection.outlook.com) fields.

    5. To return to a previous step in the installation, click Back (optional).

    6. Click Next.

13. The installation begins, and the progress is displayed in the Installation dialog.

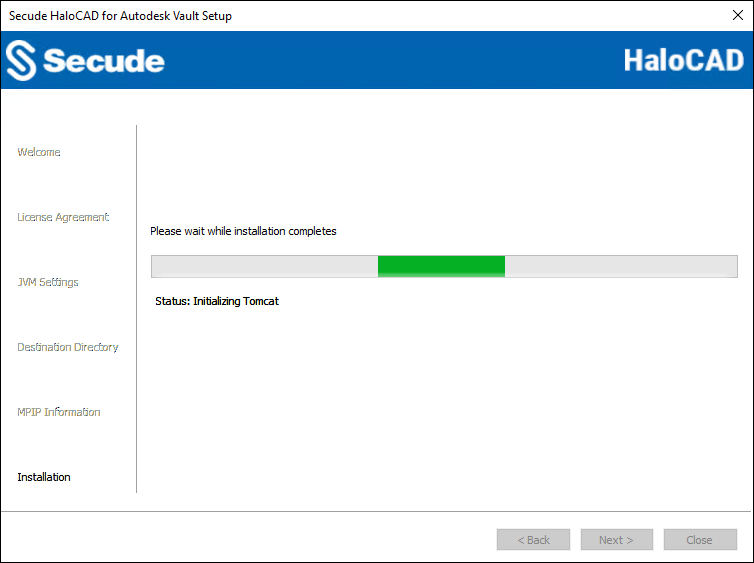

    Installation dialog

14. When the installation is complete, a confirmation message appears indicating that the HaloCAD for Autodesk Vault component has been successfully installed.

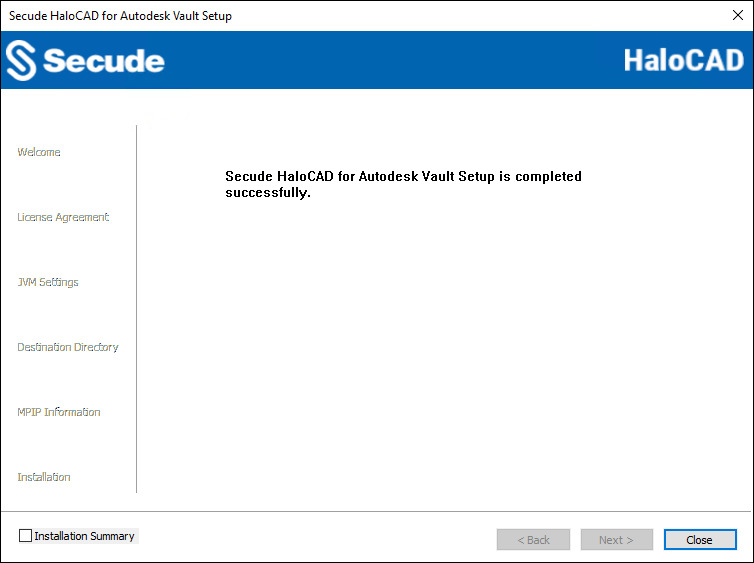

    Installation completed dialog

15. On the setup wizard, you can see the Installation Summary option. To view the summary, select the Installation Summary check box. The installation details will be summarized in the right-side pane.

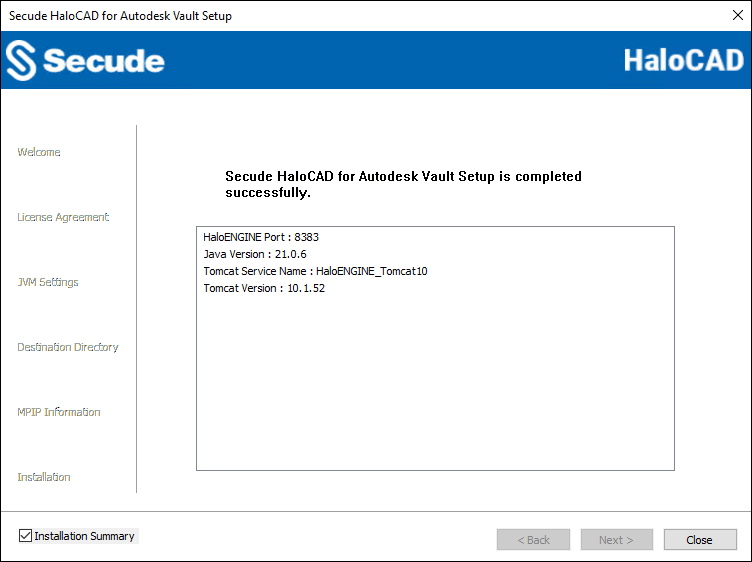

    Summary dialog

16. Click Close to exit the installation wizard.

Silent Mode

In addition to Graphical Mode, you can install the HaloCAD for Autodesk Vault component in Silent Mode. Silent Mode does not require user interaction or display a user interface. It enables you to install by using command-line options.

1. Open the Command Prompt with elevated rights (Run as Administrator).

2. Navigate to the directory that contains the HaloCAD for Autodesk Vault installer.

3. To view the available Silent Mode options, run the following command:
   Type HaloCAD_Autodesk_Vault_Setup.exe -help
   Press Enter
   Output
   ...
   HaloCAD_Autodesk_Vault_Setup.exe -install -initmempool <Initial memory pool size in MB(s).
Minimum size is 128 MB> -totalmempool <Total memory pool size in MB(s).
Maximum size is 3/4 of total RAM size.> -dir <destination_directory> -port <range_1_to_65535> -applicationid <application_id> -tenantid <tenant_id> -thumbprint <thumb_print> -cloudtype <(Commercial|Custom|Germany|US_DoD|US_GCC|US_GCC_HIGH|US_Sec|US_Nat|China_01)> (if cloudtype is Custom) <protectioncloudurl> <policycloudurl>
HaloCAD_Autodesk_Vault_Setup.exe -uninstall

4. The following command shows how to install and initialize HaloCAD.

   HaloCAD_Autodesk_Vault_Setup.exe -install -initmempool 1024 -totalmempool 2048 -dir "C:\Program Files\Secude" -applicationid 9f0de2dd-8d49-4a3f-9676-bf4b6ff17d44 -tenantid 8c425ee7-352a-4657-ac77-7dc198712cb3 -thumbprint 961602617275c2ab538cf28bb3648c0c6d97edab -cloudtype "Commercial"

5. Press Enter.

   Result

   The installation is complete.
