System Requirements

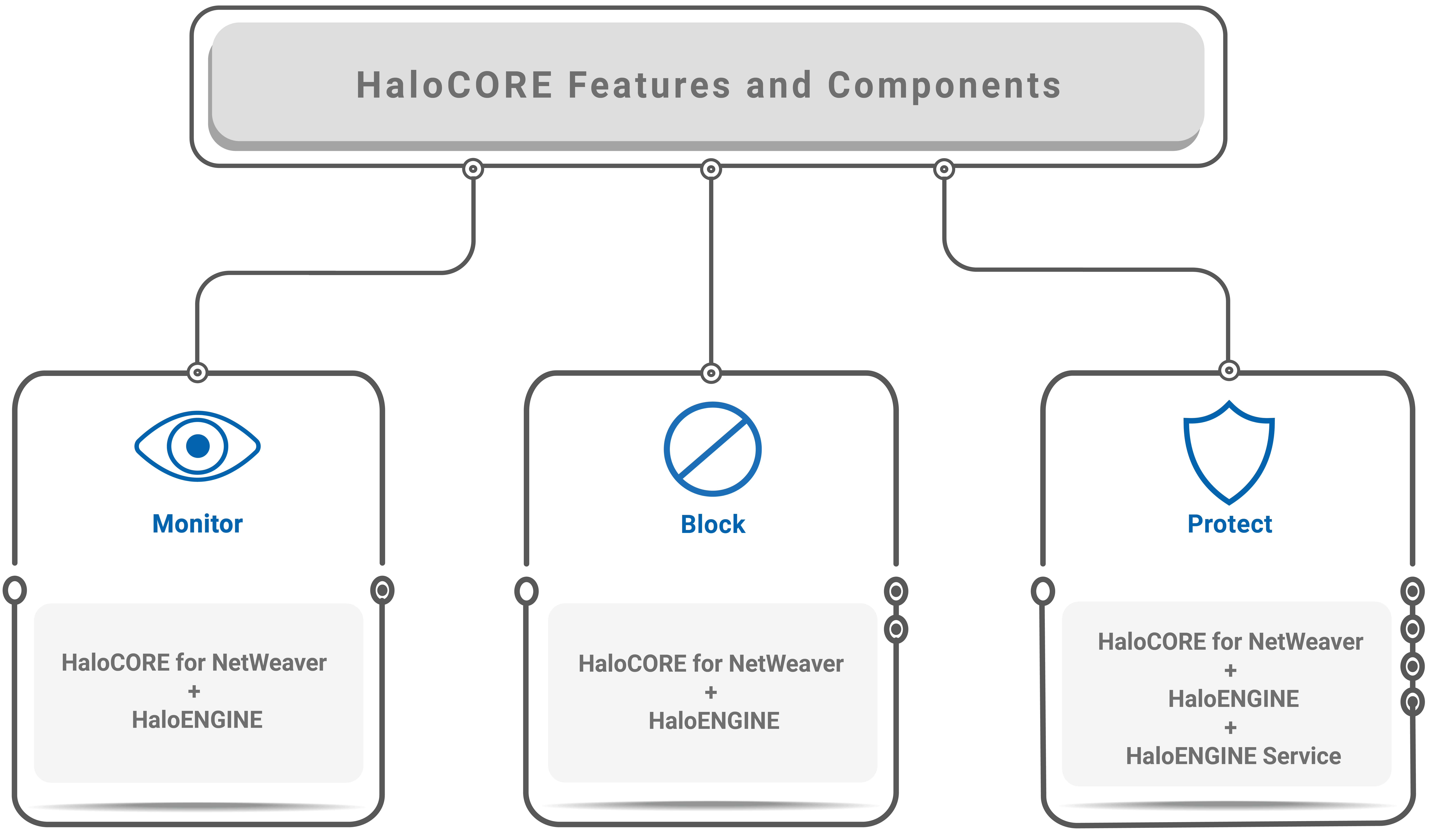

HaloCORE can be deployed with a few different configurations depending on the feature set (Monitor, Block, Protect) you would like to set up.

HaloCORE features in SAP systems

The following system requirements table specifies the minimum and recommended technical specifications, such as software and network resources, necessary to run the product.

Add-Ons	Requirements
HaloCORE for NetWeaver	The following versions are supported: S/4HANA: 1511 to 2023, S/4HANA Cloud Private Edition: till release 2023 NetWeaver: 7.00, 7.01, 7.02, 7.31, 7.40 and 7.50. HaloCORE DSI is supported from 7.02 and above only. The latest version of SPAM/SAINT is required for installing the Add-On (the minimum version is 0053) Supported interface languages: English German For more details about how to deploy the SAP Add-On, please refer to the HaloCORE Installation Manual.
HaloCORE for NetWeaver	Supported UI technologies SAP GUI for Windows SAP GUI for Java SAP GUI for HTML Web Dynpro ABAP - also includes WDA through Enterprise Portal. (HaloCORE-WDA code enhancements are supported only in NetWeaver 7.02, 7.31, 7.40, and 7.50, S/4HANA 1511 to 2023, S/4HANA Cloud Private Edition, till release 2023). NetWeaver Business Client (NWBC) Business Server Pages (BSP) Customer Relationship Management (CRM) Fiori/UI5
HaloENGINE	Please refer to the HaloENGINE Release Notes.
HaloCORE for GRC Extension	SAP GRC Add-On: GRC Foundation ABAP 10.0 (component GRCFND_A, release V1000) or greater. GRC NetWeaver Plug-In: 10.0 (component GRCPINW, release V1000_700) or greater. SAP NetWeaver (non-GRC NetWeaver systems): S/4HANA: 1511 to 2023, S/4HANA Cloud Private Edition: till release 2023, NetWeaver: 7.00, 7.01, 7.02, 7.31, 7.40 and 7.50.

Requirements

HaloCORE is an ABAP Add-On that must be installed in an SAP instance in your environment whose content you require to protect and/or label. It plugs into the SAP ABAP function module GUI_DOWNLOAD and intercepts all download requests from users using the SAP GUI. It requires code modification of the function module GUI_DOWNLOAD. In the case of Web Dynpro Application (WDA), you need to apply code enhancement. The various options of applying HaloCORE, in SAP GUI and WDA, and the related features are listed below:

Feature/NetWeaver

Audit

Block

GRC

(alert, FireFighter)

Classification (with UI)

Transparent Classification (no UI)

SAP GUI (requires modification)

NetWeaver: 7.00 - 7.50
S/4HANA: 1511 to 2023
S/4HANA Cloud Private Edition: till release 2023

Yes

WDA (modification - free)

NetWeaver: 7.02, 7.31, 7.40, 7.50
S/4HANA 1511 to 2023
S/4HANA Cloud Private Edition: till release 2023

Yes

HaloCORE Features

WDA limitation

Not officially supported for 7.00+7.01, because dynamic (= program-driven) changes of screen attributes cannot be intercepted (e.g., a download link which is dynamically shown or hidden by program logic).
